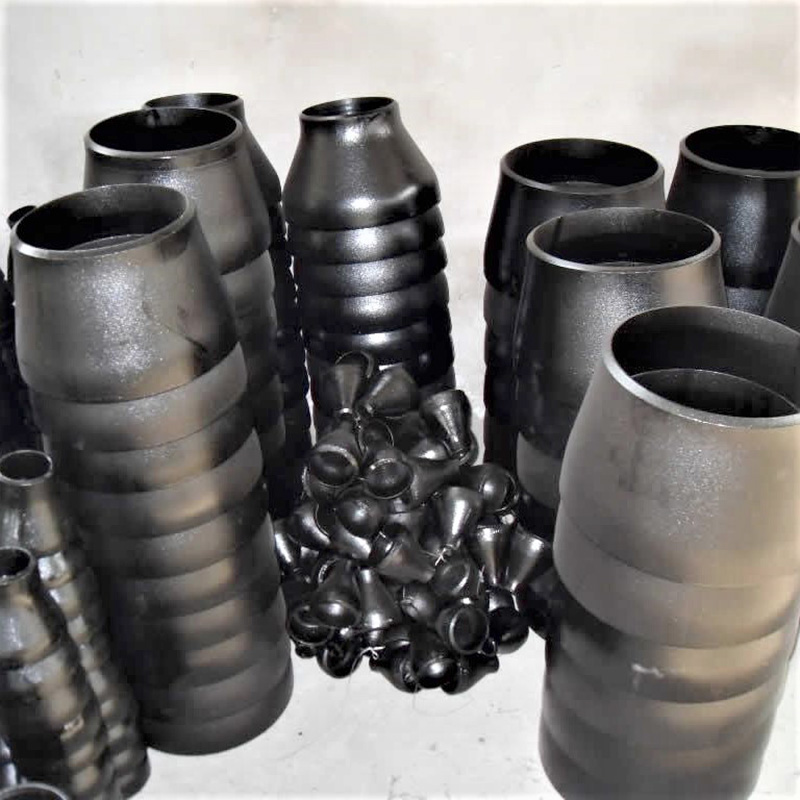

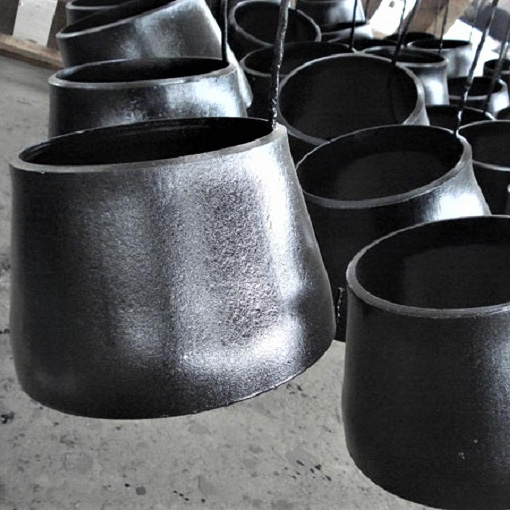

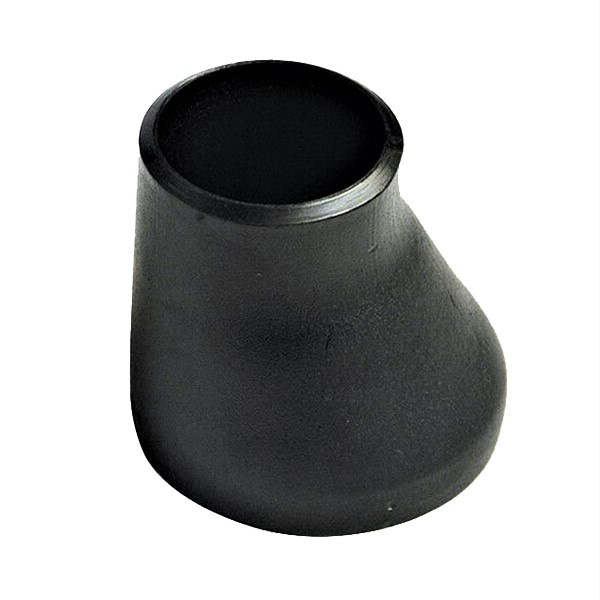

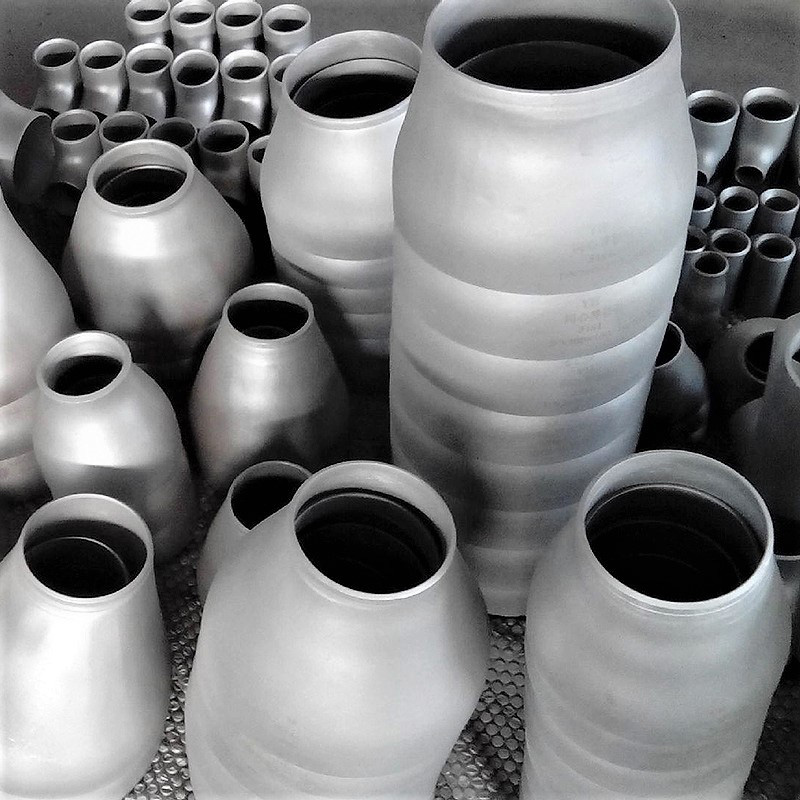

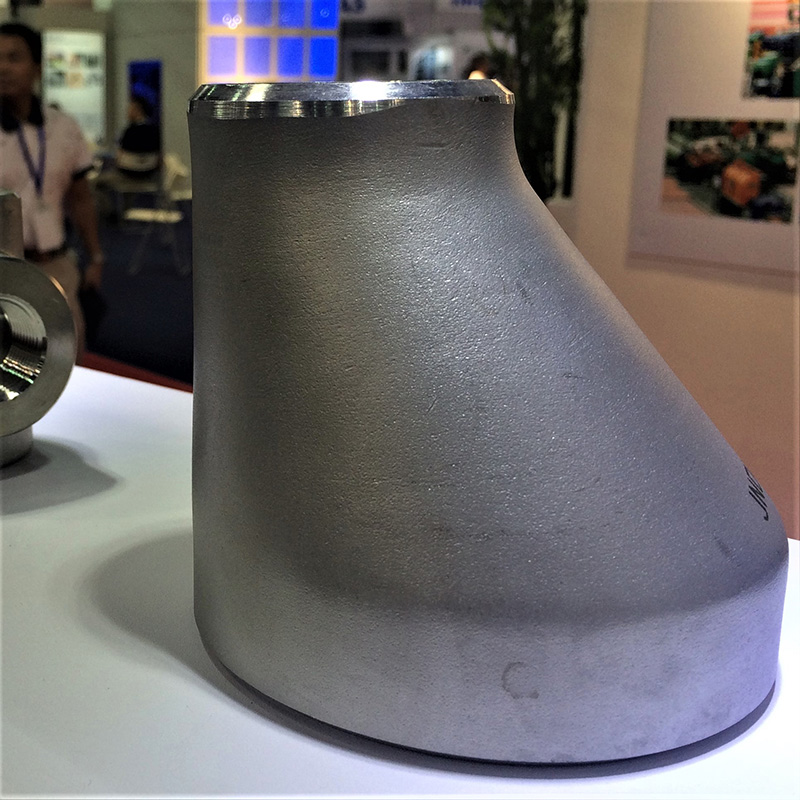

It is used for the connection between two different pipe diameters, and is divided into two types of concentric and eccentric heads according to the shape of the pipe.
|
Name |
Reducer, Concentric Reducer, Eccentric Reducer |
|
Size |
1/2” to 80” |
|
Wall Thickness |
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS |
|
Standard |
ASTM ASME A/SA 403 MSS SP43 & SP75 ANSI B16.9 ANSI B16.28 ASTM A815 ASTM B363 B366 DIN2605 DIN2615 DIN2616 DIN2617 |
|
Material |
Carbon Steel:ASTM A234 WPB WPC A105 A106 A53 A283-D API5LB A671-CC-70 A515-50 A135-A A179-C,etc |
|
Stainless Steel:304/304L, 316/316L,316Ti,321,317L,310S,etc |
|
|
Alloy Steel:A335-P1,P2 ,P5 ,P11,P12 ,P22,P91,P92,A369-FP1,P2 A250-T1 A209-T1 A213-T2,T9 ,T12 A199-T11,T22, |
|
|
Duplex Stainless Steel: S31803(SAF2205),S32750(SAF2507),S31500(3RE60) |
|
|
Surface |
Black paint,bright paint,Galvanized,Rust-proof Oil etc |
|
Carbon Steel Pipe Fitting - Concentric & Eccentric Reducers |
||||||
|
Standard |
|
Extra Strong |
||||
|
Nominal Pipe Size |
Length |
Weight in Pounds |
|
Nominal Pipe Size |
Length |
Weight in Pounds |
|
1 1/4 x 1/2 |
2 |
0.42 |
|
1 1/4 x 1/2 |
2 |
0.53 |
|
1 x 3/4 |
2 |
0.36 |
|
1 x 3/4 |
2 |
0.43 |
|
1 x 1/2 |
2 |
0.36 |
|
1 x 1/2 |
2 |
0.42 |
|
3/4 x 1 1/2 |
1 |
0.21 |
|
3/4 x 1 1/2 |
1.5 |
0.25 |
|
1 1/2 x 1 1/4 |
2.5 |
0.65 |
|
1 1/2 x 1 1/4 |
2.5 |
0.78 |
|
1 1/2 x 1 |
2.5 |
0.57 |
|
1 1/2 x 1 |
2.5 |
0.72 |
|
1 1/2 x 3/4 |
2.5 |
0.56 |
|
1 1/2 x 3/4 |
2.5 |
0.65 |
|
1 1/2 x 1/2 |
2.5 |
0.56 |
|
1 1/4 x 1/2 |
2.5 |
0.65 |
|
1 1/4 x 1 |
2 |
0.48 |
|
1 1/4 x 1 |
2 |
0.57 |
|
1 1/4 x 3/4 |
2 |
0.42 |
|
1 1/4 x 3/4 |
2 |
0.53 |
|
1 1/4 x 1/2 |
2 |
0.42 |
|
2 1/2 x 2 |
3.5 |
2.1 |
|
2 1/2 x 2 |
3.5 |
1.6 |
|
2 1/2 x 1 1/2 |
3.5 |
1.9 |
|
2 1/2 x 1 1/2 |
3.5 |
1.5 |
|
2 1/2 x 1 1/4 |
3.5 |
1.7 |
|
2 1/2 x 1 1/4 |
3.5 |
1.4 |
|
2 1/2 x 1 |
3.5 |
1.5 |
|
2 1/2 x 1 |
3.5 |
1.3 |
|
2 1/2 x 12 x 1 1/2 |
3 |
1.2 |
|
2 x 1 1/2 |
3 |
0.94 |
|
2 x 1 1/4 |
3 |
1.1 |
|
2 x 1 1/4 |
3 |
0.88 |
|
2 x 1 |
3 |
1 |
|
2 x 1 |
3 |
0.81 |
|
2 x 3/4 |
3 |
0.94 |
|
2 x 3/4 |
3 |
0.74 |
|
3 1/2 x 3 |
4 |
4.1 |
|
3 1/2 x 3 |
4 |
2.8 |
|
3 1/2 x 2 1/2 |
4 |
3.7 |
|
3 1/2 x 2 1/2 |
4 |
2.7 |
|
3 1/2 x 2 |
4 |
3.5 |
|
3 1/2 x 2 |
4 |
2.6 |
|
3 1/2 x 1 1/2 |
4 |
3.3 |
|
3 1/2 x 1 1/2 |
4 |
2.6 |
|
3 1/2 x 1 1/2 |
4 |
3.3 |
|
3 1/2 x 1 1/4 |
4 |
2.5 |
|
3 1/2 x 1 1/4 |
4 |
3.3 |
|
3 x 2 1/2 |
3.5 |
2.2 |
|
3 x 2 1/2 |
3.5 |
2.8 |
|
3 x 2 |
3.5 |
2 |
|
3 x 2 |
3.5 |
2.6 |
|
3 x 1 1/2 |
3.5 |
1.9 |
|
3 x 1 1/2 |
3.5 |
2.4 |
|
3 x 1 1/4 |
3.5 |
1.8 |
|
3 x 1 1/4 |
3.5 |
2.3 |
|
3 x 1 |
3.5 |
1.7 |
|
3 x 1 |
3.5 |
2.2 |
|
4 x 3 1/2 |
4 |
3.5 |
|
4 x 3 1/2 |
4 |
4.9 |
|
4 x 3 |
4 |
3.3 |
|
4 x 3 |
4 |
4.7 |
|
4 x 2 1/2 |
4 |
3.2 |
|
4 x 2 1/2 |
4 |
4.6 |
|
4 x 2 |
4 |
3.1 |
|
4 x 2 |
4 |
4.3 |
|
4 x 1 1/2 |
4 |
3 |
|
4 x 1 1/2 |
4 |
4.2 |
|
4 x 1 1/4 |
4 |
3 |
|
4 x 1 1/4 |
4 |
4.1 |
|
4 x 1 |
4 |
2.8 |
|
4 x 1 |
4 |
4 |
|
5 x 4 |
5 |
5.5 |
|
5 x 4 |
5 |
7.5 |
|
5 x 3 1/2 |
5 |
5.3 |
|
5 x 3 1/2 |
5 |
6.9 |
|
5 x 3 |
5 |
5.1 |
|
5 x 3 |
5 |
6.3 |
|
5 x 2 1/2 |
5 |
4.8 |
|
5 x 2 1/2 |
5 |
6.1 |
|
5 x 2 |
5 |
4.7 |
|
5 x 2 |
5 |
6 |
|
6 x 5 |
5.5 |
7.6 |
|
6 x 5 |
5.5 |
11.5 |
|
6 x 4 |
5.5 |
7.4 |
|
6 x 4 |
5.5 |
10.7 |
|
6 x 3 1/2 |
5.5 |
7.1 |
|
6 x 3 1/2 |
5.5 |
10 |
|
6 x 3 |
5.5 |
6.9 |
|
6 x 3 |
5.5 |
9.7 |
|
6 x 2 1/2 |
5.5 |
6.6 |
|
6 x 2 1/2 |
5.5 |
9.1 |
|
6 x 2 |
5.5 |
6.5 |
|
6 x 2 |
5.5 |
8.6 |
|
8 x 6 |
6 |
12.3 |
|
8 x 6 |
6 |
18.8 |
|
8 x 5 |
6 |
11.5 |
|
8 x 5 |
6 |
17.6 |
|
8 x 4 |
6 |
10.8 |
|
8 x 4 |
6 |
17 |
|
8 x 3 1/2 |
6 |
10.6 |
|
8 x 3 1/2 |
6 |
15.9 |
|
8 x 3 |
6 |
9.8 |
|
8 x 3 |
6 |
15 |
|
10 x 8 |
7 |
22.1 |
|
10 x 8 |
8 |
29.4 |
|
10 x 6 |
7 |
20.7 |
|
10 x 6 |
7 |
28.3 |
|
10 x 5 |
7 |
19.5 |
|
10 x 5 |
7 |
26.9 |
|
10 x 4 |
7 |
18.4 |
|
10 x 4 |
7 |
24.2 |
|
12 x 10 |
8 |
32.4 |
|
12 x 10 |
8 |
41.5 |
|
12 x 8 |
8 |
30.5 |
|
12 x 8 |
8 |
38.6 |
|
12 x 6 |
8 |
29.5 |
|
12 x 6 |
8 |
37.4 |
|
12 x 5 |
8 |
27.8 |
|
12 x 5 |
8 |
36.3 |
|
12 x 4 |
8 |
26.2 |
|
12 x 4 |
8 |
34.7 |
|
14 x 12 |
13 |
63.1 |
|
14 x 12 |
13 |
81 |
|
14 x 10 |
13 |
61.4 |
|
14 x 10 |
13 |
76.7 |
|
14 x 8 |
13 |
60 |
|
14 x 8 |
13 |
74.6 |
|
14 x 6 |
13 |
59.2 |
|
14 x 6 |
13 |
72.3 |
|
16 x 14 |
14 |
75.4 |
|
16 x 14 |
14 |
98 |
|
16 x 12 |
14 |
72.7 |
|
16 x 12 |
14 |
95.8 |
|
16 x 10 |
14 |
71.1 |
|
16 x 10 |
14 |
93.3 |
|
16 x 8 |
14 |
69.4 |
|
16 x 8 |
14 |
91.1 |
|
16 x 6 |
14 |
67.4 |
|
16 x 6 |
14 |
89.8 |
|
18 x 16 |
15 |
87.3 |
|
18 x 16 |
15 |
118 |
|
18 x 14 |
15 |
86 |
|
18 x 14 |
15 |
117 |
|
18 x 12 |
15 |
84.8 |
|
18 x 12 |
15 |
115 |
|
18 x 10 |
15 |
83.7 |
|
18 x 10 |
15 |
113 |
|
20 x 18 |
20 |
123 |
|
20 x 18 |
20 |
162 |
|
20 x 16 |
20 |
121 |
|
20 x 16 |
20 |
159 |
|
20 x 14 |
20 |
119 |
|
20 x 14 |
20 |
157 |
|
20 x 12 |
20 |
118 |
|
20 x 12 |
20 |
155 |
|
20 x 10 |
20 |
117 |
|
20 x 10 |
20 |
152 |
|
24 x 20 |
20 |
156 |
|
24 x 20 |
20 |
201 |
|
24 x 18 |
20 |
153 |
|
24 x 18 |
20 |
197 |
|
24 x 16 |
20 |
150 |
|
24 x 16 |
20 |
194 |
|
24 x 14 |
20 |
147 |
|
30 x 24 |
24 |
315 |
|
24 x 12 |
20 |
144 |
|
30 x 20 |
24 |
315 |
|
24 x 10 |
20 |
141 |
|
30 x 18 |
24 |
315 |
|
30 x 24 |
24 |
315 |
|
36 x 30 |
24 |
379 |
|
30 x 20 |
24 |
315 |
|
36 x 24 |
24 |
379 |
|
30 x 18 |
24 |
315 |
|
36 x 20 |
24 |
379 |
|
36 x 30 |
24 |
379 |
|
42 x 36 |
24 |
443 |
|
36 x 24 |
24 |
379 |
|
42 x 30 |
24 |
443 |
|
36 x 20 |
24 |
379 |
|
42 x 24 |
24 |
443 |
|
42 x 36 |
24 |
443 |
|
48 x 42 |
28 |
525 |
|
42 x 30 |
24 |
443 |
|
48 x 36 |
28 |
525 |
|
42 x 24 |
24 |
443 |
|
48 x 30 |
28 |
525 |
|
48 x 42 |
28 |
525 |
|
|
|
|
|
48 x 36 |
28 |
525 |
|
|
|
|
|
48 x 30 |
28 |
525 |
|
|
|
|
